DB25 Breakout Board

BRK25F-R-DIN

BRK25F-R-DIN
(click image to enlarge)
BRK25F-R-DIN
BRK25F-R-FT
BRK25F-R-FT (Overhead View)
BRK25F-S-DIN
BRK25F-S-FT
BRK25MV2-R-DIN
BRK25MV2-R-FT
BRK25MV2-R-FT (Overhead View)
BRK25MV2-S-DIN
BRK25MV2-S-FT
  • Available with DB25 Male or Female connector
  • Perfect for parallel port and serial port circuits
  • Screw terminal for each of the 25 lines, plus shield
  • Solder pad connection space for all 25 lines, plus shield
  • Supports addition of .1" pin headers
  • Rubber feet or DIN rail mount
See Also: More DB25 Breakout Boards,   DB25 Breadboard Adapters,   DB25 Cables


General Description

Make connections quickly and reliably with this breakout board, which brings every pin of its DB25 connector out to screw terminals. This product is available with both male and female connectors.

Each pin, including shield, is also brought to solder pads (4 per pin) at 0.1" spacing, allowing easy addition of pin headers or other components. Please note that the breakout boards are manufactured with a connection between each connector pin and the corresponding terminal block position; no soldering of any type is necessary. The solder pads simply provide an area for making optional connections to additional headers or other components.

This breakout board is perfect for production applications as well as experimentation and prototype work. It is helpful for working with I/O cards, DAQ devices, CNC equipment, and other devices that use a DB-25 connector.

We stock a variety of DB25 breakout board styles and form factors. Please have a look here.

A breakout board is sometimes referred to as a "transition module", "terminal board", "terminal block", "breakout box", "breakout adapter", "terminator", or "interface module".

Common uses for the DB25 breakout boards:

Breakout boards with enclosures Need an enclosed breakout board? Winford offers our BRKE line of boards, which come installed in enclosures.

Product Documents

Part #DescriptionData SheetPDF DrawingDWG DrawingIGES ModelSTEP Model
BRK25F-R-DIN Rev BDB25 Female, Right Angle, DIN MountPDF PDF DWG IGES CAD
BRK25F-R-FT Rev BDB25 Female, Right Angle, Rubber FeetPDF PDF DWG IGES CAD
BRK25F-S-DIN Rev BDB25 Female, Straight, DIN MountPDF PDF DWG IGES CAD
BRK25F-S-FT Rev BDB25 Female, Straight, Rubber FeetPDF PDF DWG IGES CAD
BRK25MV2-R-DIN Rev ADB25 Male, Right Angle, DIN MountPDF PDF DWG IGES CAD
BRK25MV2-R-FT Rev ADB25 Male, Right Angle, Rubber FeetPDF PDF DWG IGES CAD
BRK25MV2-S-DIN Rev ADB25 Male, Straight, DIN MountPDF PDF DWG IGES CAD
BRK25MV2-S-FT Rev ADB25 Male, Straight, Rubber FeetPDF PDF DWG IGES CAD
BRK25MConnection Reference for Parallel PortsPDF
BRK25F-R-DIN Rev B

DB25 Female, Right Angle, DIN Mount

PDF PDF DWG IGES CAD
BRK25F-R-FT Rev B

DB25 Female, Right Angle, Rubber Feet

PDF PDF DWG IGES CAD
BRK25F-S-DIN Rev B

DB25 Female, Straight, DIN Mount

PDF PDF DWG IGES CAD
BRK25F-S-FT Rev B

DB25 Female, Straight, Rubber Feet

PDF PDF DWG IGES CAD
BRK25MV2-R-DIN Rev A

DB25 Male, Right Angle, DIN Mount

PDF PDF DWG IGES CAD
BRK25MV2-R-FT Rev A

DB25 Male, Right Angle, Rubber Feet

PDF PDF DWG IGES CAD
BRK25MV2-S-DIN Rev A

DB25 Male, Straight, DIN Mount

PDF PDF DWG IGES CAD
BRK25MV2-S-FT Rev A

DB25 Male, Straight, Rubber Feet

PDF PDF DWG IGES CAD
BRK25M

Connection Reference for Parallel Ports

PDF

Connector Style

These breakout boards are available with either a Right Angle connector or a Straight ("Vertical") connector. The terms Right Angle and Straight refer to the connector itself, NOT the relationship of the mating cable to the plane of the PCB. In fact, the cable mating to a Right Angle connector is parallel to the PCB, while the cable mating to a Straight connector is perpendicular to the PCB. These are pictured below:

BRK25F-R-FT
Right Angle Connector
BRK25F-R-FT pictured
EnlargeClick image to enlarge.

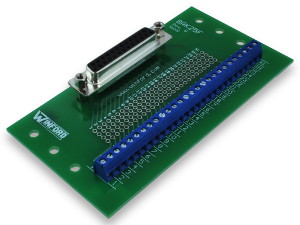

BRK25F-S-FT
Straight Connector
BRK25F-S-FT pictured
EnlargeClick image to enlarge.

Mounting Options

These products are available in two different mounting variants. Product numbers ending with -DIN come with DIN clips already installed and ready to snap onto 35mm or 32mm DIN rail. Product numbers ending with -FT have stick-on rubber feet installed on the bottom side, allowing for benchtop use or panel mounting. For panel mounting, we suggest 1/4" nylon standoffs under the mounting holes, and #6 screws.

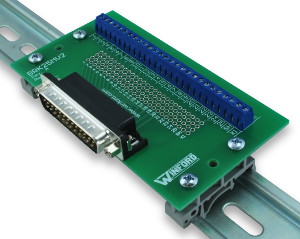

BRK25MV2-R-DIN
DIN Rail Mount
BRK25MV2-R-DIN
EnlargeClick image to enlarge.
Rail not included

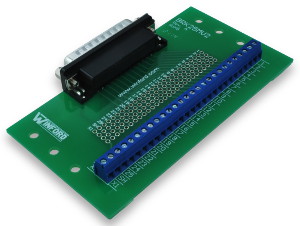

BRK25MV2-R-FT
Rubber Feet
BRK25MV2-R-FT
EnlargeClick image to enlarge.

Product Details

  • DB25 connector
  • Screw terminal for each of the 25 lines, plus shield
  • Solder pad connection holes, four (4) per line
  • Supports addition of .1" pin headers
  • Screw terminals accomodate wire sizes from 16AWG to 26AWG
  • Approximate dimensions: 2.38" x 4.5"
  • Rubber feet or DIN rail mount

Screwdrivers Need a quality screwdriver for your breakout boards? Winford sells Wiha screwdrivers!

Pricing and Ordering

Product # Description 1+ 10+ RoHS Buy Now
DB25 Female Right Angle Connector:
BRK25F-R-DIN DB25 Female Breakout Board, R/A Connector, DIN Rail Mount $21.50 $20.50  Yes
BRK25F-R-FT DB25 Female Breakout Board, R/A Connector, Feet $19.99 $19.00  Yes
DB25 Female Straight Connector:
BRK25F-S-DIN DB25 Female Breakout Board, Straight Connector, DIN Rail Mount $22.00 $21.00  Yes
BRK25F-S-FT DB25 Female Breakout Board, Straight Connector, Feet $20.50 $19.50  Yes
DB25 Male Right Angle Connector:
BRK25MV2-R-DIN DB25 Male Breakout Board, R/A Connector, DIN Rail Mount $21.50 $20.50  Yes
BRK25MV2-R-FT DB25 Male Breakout Board, R/A Connector, Feet $19.99 $19.00  Yes
DB25 Male Straight Connector:
BRK25MV2-S-DIN DB25 Male Breakout Board, Straight Connector, DIN Rail Mount $22.00 $21.00  Yes
BRK25MV2-S-FT DB25 Male Breakout Board, Straight Connector, Feet $20.50 $19.50  Yes

DB25 Female Right Angle Connector:
BRK25F-R-DIN
RoHS   Yes
DB25 Female Breakout Board, R/A Connector, DIN Rail Mount
QuantityPrice
1+$21.50
10+$20.50
BRK25F-R-FT
RoHS   Yes
DB25 Female Breakout Board, R/A Connector, Feet
QuantityPrice
1+$19.99
10+$19.00
DB25 Female Straight Connector:
BRK25F-S-DIN
RoHS   Yes
DB25 Female Breakout Board, Straight Connector, DIN Rail Mount
QuantityPrice
1+$22.00
10+$21.00
BRK25F-S-FT
RoHS   Yes
DB25 Female Breakout Board, Straight Connector, Feet
QuantityPrice
1+$20.50
10+$19.50
DB25 Male Right Angle Connector:
BRK25MV2-R-DIN
RoHS   Yes
DB25 Male Breakout Board, R/A Connector, DIN Rail Mount
QuantityPrice
1+$21.50
10+$20.50
BRK25MV2-R-FT
RoHS   Yes
DB25 Male Breakout Board, R/A Connector, Feet
QuantityPrice
1+$19.99
10+$19.00
DB25 Male Straight Connector:
BRK25MV2-S-DIN
RoHS   Yes
DB25 Male Breakout Board, Straight Connector, DIN Rail Mount
QuantityPrice
1+$22.00
10+$21.00
BRK25MV2-S-FT
RoHS   Yes
DB25 Male Breakout Board, Straight Connector, Feet
QuantityPrice
1+$20.50
10+$19.50

All of the above items are normally stocked. Please call us if you need to verify availability for a specific quantity, or for pricing at higher quantities. Please visit our ordering page for our ordering policies and a list of ordering methods.
