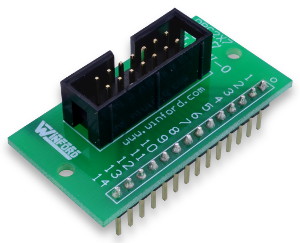

2x7 0.1" Header Breadboard Adapter

<b>PBC2X7</b>

PBC2X7
(click image to enlarge)
<b>PBC2X7</b>
<b>PBC2X7</b> (Overhead View)
  • Quickly bring connections into prototyping breadboards
  • Great for microcontroller circuits
  • Each pin labeled according to header pin numbering
  • Dimensions: approx 1.7" x 0.9"
  • Header pins pitch: 0.1"
See Also: More Breadboard Adapters,   IDC 0.1" Header Connectors


General Description

These handy adapters allow you to quickly and easily connect a 2x7 (14 position) 0.1" pitch header connector onto a breadboard / perf board circuit. Each pin is brought out to the 14-pin single-row header on the bottom of the board; the single-row header can easily be inserted into a breadboard or perfboard. This design allows the adapter to be placed on the edge of a breadboard, keeping cables and connections out of the middle of the breadboard where you are working. The pins are arranged in numerical order, and each is clearly labeled with its pin number.

The 2x7 header on this product is the shrouded variety, with a center slot allowing for a polarization tab on the mating connector.

One application is breadboarding LCD display circuits for displays that use a 2x7 0.1" header connector.

We offer these breadboard adapters with other styles of connectors as well. Have one of each in your tool box!

Need something different? We stock a variety of dual-row_header breakout board styles and form factors. Please have a look!

Product Documents

Part #DescriptionPDF Drawing
PBC2X7PBC2X7 Physical LayoutPDF
PBC2X7

PBC2X7 Physical Layout

PDF

Product Details

  • Quickly bring connections into prototyping breadboards
  • Each pin labeled according to header pin numbering
  • Dimensions: approx 1.7" x 0.9"
  • Header pins pitch: 0.1"

Pricing and Ordering

Product # Description 1+ 10+ RoHS Buy Now
PBC2X7 2x7 0.1" Dual Row Header Breadboard Adapter $8.05 $7.50  Yes

PBC2X7
RoHS   Yes
2x7 0.1" Dual Row Header Breadboard Adapter
QuantityPrice
1+$8.05
10+$7.50

All of the above items are normally stocked. Please call us if you need to verify availability for a specific quantity, or for pricing at higher quantities. Please visit our ordering page for our ordering policies and a list of ordering methods.
