DB15 Premium Extension Cables
- DB15 connectors:
- Premium Series: 24 AWG and Braid Shield
- Available in two lengths
- Extends all 15 lines straight through
- Currently available in Male-Female
General Description
These are Premium Series extender cables for any device which uses a DB-15 connector. They are available in two different lengths. All 15 pins are extended, and the wiring is straight-through (pin 1 to pin 1, 2 to 2, ...) including a foil and braid shield around the cable and connecting the shells. Combined foil and braid shielding offers improved coverage and durability. The conductors are 24 AWG wire. These cables are blue in color. These cables have 2-row (standard density) DB15 connectors. For cables with 3-row DB15 High Density connectors (as used for VGA) please click here.
Product Documents
| Part # | Description | Data Sheet | PDF Drawing | DWG Drawing |
|---|---|---|---|---|
| EXTP15 | DB15 Premium Extension Cable |
|
|
|

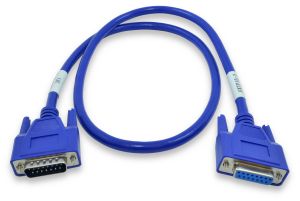

DB15 Premium Extension Cable
Product Details
- Currently available in Male-Female
- All pins wired 1:1 (e.g pin 1 to pin 1, pin 2 to pin 2, etc.)
- 24 AWG conductors
- Foil and Braid shield
Series Comparison: Basic vs Premium
The Premium (EXTP) cables offer enhanced features compared to the Basic (EXT) series. We will continue to sell both series as stock products.
 |
 |
||
|---|---|---|---|
| Basic EXT |
Premium EXTP |
||
| Wire AWG | 28 AWG | 24 AWG | |
| Shielding | Foil | Foil and Braid | |
| Pin Mapping | 1:1 | 1:1 | |
| Internal Wire Color Code | Not Guaranteed | Documented | |
| Labeled Ends | N/A | Part # and Length | |
| Outer Color | Beige | Blue |
Pricing and Ordering
| Product # | Description | 1+ | 10+ | 25+ | 50+ | 100+ | RoHS | Buy Now |
|---|---|---|---|---|---|---|---|---|
Male-Female: |
||||||||
| EXTP15-3 | DB15 Premium 24AWG Extension Cable, Male-Female, Medium Blue, 3Ft | $17.00 | $16.50 | $16.35 | $16.30 | $16.20 | Yes | |
| EXTP15-6 | DB15 Premium 24AWG Extension Cable, Male-Female, Medium Blue, 6Ft | $23.00 | $22.50 | $22.35 | $22.30 | $22.20 | Yes | |
| Quantity | Price |
|---|---|
| 1+ | $17.00 |
| 10+ | $16.50 |
| 25+ | $16.35 |
| 50+ | $16.30 |
| 100+ | $16.20 |
| Quantity | Price |
|---|---|
| 1+ | $23.00 |
| 10+ | $22.50 |
| 25+ | $22.35 |
| 50+ | $22.30 |
| 100+ | $22.20 |
All of the above items are normally stocked. Please call us if you need to verify availability for a specific quantity, or for pricing at higher quantities. Please visit our ordering page for our ordering policies and a list of ordering methods.
