DB26HD Solder Cup Connectors

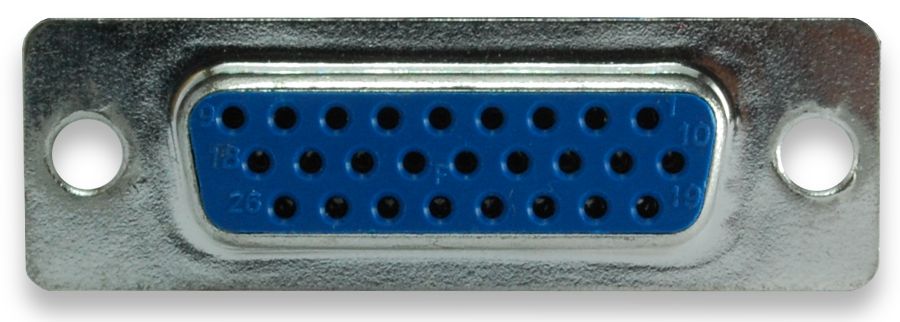

CNS26HDF (DB26HD Female)

CNS26HDF (DB26HD Female)
(click image to enlarge)
CNS26HDF (DB26HD Female)
CNS26HDM (DB26HD Male)
CNS26HDF (Back View)
DB26HD Connector Face
HOOD15 (Connector Shell)
  • Male and Female connectors available
  • Solder cup style
  • Hoods available
See Also: More Solder Cup Connectors,   DB26HD PCB Connectors,   DB26HD Cables,   DB26HD Breakout Boards


General Description

These DB-26HD connectors are useful for a wide variety of electronics projects; common applications include I/O and DAQ equipment.

These are solder-cup style connectors. We also offer matching hoods. The hoods come with all the necessary hardware. Since these connectors have the same shell size as a DB15 standard density connector, they use the DB15 hoods (Part# HOOD15).

Note: The color of the plastic insulation material on these connectors may vary from the picture. Possible colors are Black, Blue, and White. If you need a specific color, please call.

Technically, the correct term for these connectors is DA26, although the term DB26HD is more commonly used.

Product Documents

Part #DescriptionData Sheet
HOOD SeriesHOOD Series D-Sub Plastic HoodsPDF
HOOD Series

HOOD Series D-Sub Plastic Hoods

PDF

Product Details

  • Male and Female connectors available
  • Solder cup style
  • Hoods available

Pricing and Ordering

Product # Description 1+ 10+ 50+ 100+ RoHS Buy Now
CNS26HDF DB26HD Female Solder Cup Connector $0.99 $0.90 $0.90 $0.82  Yes
CNS26HDM DB26HD Male Solder Cup Connector $0.99 $0.90 $0.86 $0.82  Yes
HOOD15 Plastic Hood for DB15/DB26HD Connectors; Color: Gray $0.49 $0.44 $0.42 $0.40  Yes

CNS26HDF
RoHS   Yes
DB26HD Female Solder Cup Connector
QuantityPrice
1+$0.99
10+$0.90
50+$0.90
100+$0.82
CNS26HDM
RoHS   Yes
DB26HD Male Solder Cup Connector
QuantityPrice
1+$0.99
10+$0.90
50+$0.86
100+$0.82
HOOD15
RoHS   Yes
Plastic Hood for DB15/DB26HD Connectors; Color: Gray
QuantityPrice
1+$0.49
10+$0.44
50+$0.42
100+$0.40

All of the above items are normally stocked. Please call us if you need to verify availability for a specific quantity, or for pricing at higher quantities. Please visit our ordering page for our ordering policies and a list of ordering methods.
