Analog Comparator Board: 2 Channels

CMPA102-FT

CMPA102-FT
(click image to enlarge)
CMPA102-FT
CMPA102-DIN
CMPA102-FT (Overhead View)
  • Two non-inverting analog comparator channels with open-drain outputs
  • Easily set independent rising and falling threshold voltages
  • Thresholds may be set with onboard potentiometers (2 per channel), or may be provided externally
  • LEDs provide visual indication for each state and power
  • Wide operating voltage range (3.3V to 24V)
  • Buffered output stage for higher current sink capability
  • Mounting Options: Rubber Feet, Panel, or DIN Rail


General Description

An analog comparator constantly compares the voltage of an input signal to a reference voltage and provides a digital "high" or "low" output to indicate whether the input voltage is above or below the threshold. The CMPA102 comparator board provides two channels of comparator functions with a non-inverting open-drain protected output for each channel. Hysteresis is easily controlled with separate high and low threshold voltages. Each threshold may be set using the onboard potentiometers, or thresholds may be provided externally by the user. Input signal range includes the input-side supply rail and ground, without the need to use voltage dividers. The CMPA102 is suitable for use with supply voltages of anywhere from 3.3V to 24V. This robust design includes protected low-side output drivers that provide significant sink current capability. Reverse-polarity protection on inputs and outputs is also included.

This board includes terminal blocks to provide convenient access to the signals.

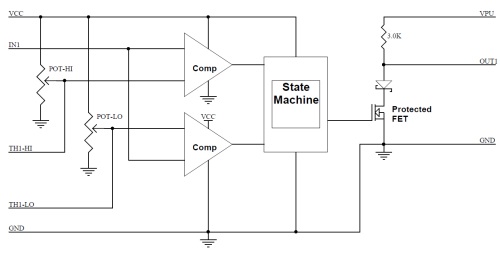

CMPA102 Simplified Schematic (one channel shown)
Simplified Schematic of CMPA102 (one channel shown)
EnlargeClick image to enlarge.

Applications

  • Monitoring sensor signals (fluid level, temperature, pressure, etc)
  • Low-side driver for small DC loads (motors, solenoids, bulbs, etc)
  • Simple closed-loop hysteretic control
  • Interface between equipment with different logic levels
  • Driving a load that could be subjected to fault conditions (e.g., overcurrent, short to supply)


A comparator is sometimes referred to as a "threshold detector" or "hysteretic controller."

Product Documents

Part #DescriptionData Sheet
CMPA102-x2-Channel analog comparator board datasheetPDF
CMPA102-x

2-Channel analog comparator board datasheet

PDF

Mounting Options

These products are available in two different mounting variants. Product numbers ending with -DIN come with DIN clips already installed and ready to snap onto 35mm or 32mm DIN rail. Product numbers ending with -FT have stick-on rubber feet installed on the bottom side, allowing for benchtop use or panel mounting. For panel mounting, we suggest 1/4" nylon standoffs under the mounting holes, and #6 screws.

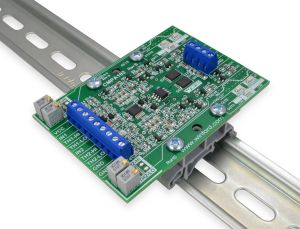

CMPA102-DIN
DIN Rail Mount
CMPA102-DIN
EnlargeClick image to enlarge.
Rail not included

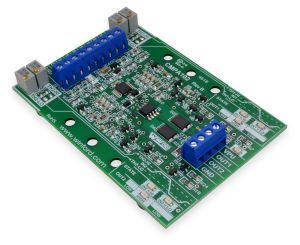

CMPA102-FT
Rubber Feet
CMPA102-FT
EnlargeClick image to enlarge.

Product Details

  • Two non-inverting analog comparator channels with open-drain outputs
  • Easily set independent rising and falling threshold voltages
  • Thresholds may be set with onboard potentiometers (2 per channel), or may be provided externally
  • Hysteresis is independent of output-side supply voltage and loading
  • Deterministic start-up state
  • LEDs provide visual indication for each state and power
  • Rail-to-Rail input signal voltage range includes ground and input supply rail
  • If desired, easily use separate supplies for input supply and output supply
  • Wide operating voltage range (3.3V to 24V)
  • Buffered output stage for higher current sink capability
  • Output stage includes current limit and thermal limit features
  • Includes reverse-polarity protection on inputs and outputs
  • Redundant ground connections at terminal block
  • Approximate dimensions: 3.3" x 2.3"
  • Mounting Options: Rubber Feet, Panel, or DIN Rail

Pricing and Ordering

Product # Description 1+ 10+ RoHS Buy Now
CMPA102-DIN Comparator Board, Protected Outputs, 2 Channels, DIN $68.05 $64.05  Yes
CMPA102-FT Comparator Board, Protected Outputs, 2 Channels, Feet $66.35 $62.35  Yes

CMPA102-DIN
RoHS   Yes
Comparator Board, Protected Outputs, 2 Channels, DIN
QuantityPrice
1+$68.05
10+$64.05
CMPA102-FT
RoHS   Yes
Comparator Board, Protected Outputs, 2 Channels, Feet
QuantityPrice
1+$66.35
10+$62.35

All of the above items are normally stocked. Please call us if you need to verify availability for a specific quantity, or for pricing at higher quantities. Please visit our ordering page for our ordering policies and a list of ordering methods.
