6P6C Slim Panel-Mount Breakout Boards

BRKSM6P6CSJ-R-P

BRKSM6P6CSJ-R-P
(click image to enlarge)
BRKSM6P6CSJ-R-P
BRKSM6P6CSJ-R-P (Mounted in Panel)
BRKSM6P6CSJ-R-P (Connector End)
BRKSM6P6CSJ-R-P (Mounting Bracket Face)
  • 6P6C Jack
  • Use with RJ11, RJ12, RJ13, RJ14, RJ18, and RJ25 applications
  • Screw terminal for each of the 6 lines, plus shield
  • Designed to be panel mounted
  • Small footprint
See Also: RJ12 (6P6C) Cables,   More RJ12 (6P6C) Products


General Description

Make connections quickly and reliably with this breakout board, which brings every pin of its 6P6C modular jack connector out to screw terminals.

Breakout Board Mounted through a Panel

These breakout boards are designed to be mounted in a panel, thus providing a convenient method of passing an RJ12 / 6P6C connection through a panel. The compact design of this board takes up minimal area on the panel surface, thus potentially allowing many connectors to be mounted in a relatively small area. Although the breakout board footprint is small, provision has been included for wire strain reliefs; holes in the board provide anchor points where tie-wraps can be attached, thus securing the wires at the edge of the board.

All RJ12 / 6P6C signal pins plus the connector shield are brought out to screw terminals.

This breakout board is perfect for production applications as well as experimentation and prototype work. It is well-suited for working with serial ports, sensors, data acquisition (DAQ) equipment, telephone lines, RS-232 devices, and other devices that use a RJ11 / RJ12 / RJ13 / RJ14 / RJ18 / RJ25 / 6P6C connector.

The 6P6C designation on the modular jack stands for 6-Position, 6-Conductor, meaning it will accept telephone connectors commonly referred to as RJ11, RJ12, RJ13, RJ14, RJ18, and RJ25.

Need something different? We stock a variety of RJ12/6P6C breakout board styles and form factors. Please have a look!

A breakout board is sometimes referred to as a "transition module", "terminal board", "terminal block", "breakout box", "breakout adapter", "terminator", or "interface module".

Product Documents

Part #DescriptionPDF DrawingDWG DrawingIGES ModelSTEP Model
BRKSM6P6CSJ-R-PRJ11 / RJ12 / RJ13 / RJ14 / 6P6C, Slim Profile, R/A Connector, Panel MountPDF DWG IGES CAD
BRKSM6P6CSJ-R-P

RJ11 / RJ12 / RJ13 / RJ14 / 6P6C, Slim Profile, R/A Connector, Panel Mount

PDF DWG IGES CAD

Panel Mounting

This product is designed to mount behind a panel face and extend through the panel. One end of the product features sturdy metal angle brackets with threaded holes (#4-40) to provide panel mounting capability. Two additional #4-40 screws (not included) are used to attach the breakout board assembly to the panel. The connector extends approximately 2.3 millimeters past the face of the mounting brackets, and thus the connector extends through the panel. A cutout must be made in the panel to accommodate the connector, and two holes are needed for the mounting screws. For more information on appropriate panel cutout size and locations, please see the product drawing document.

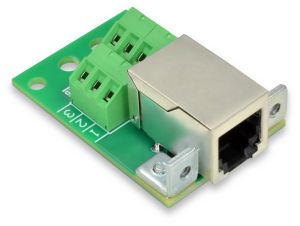

Connector End
Connector End
EnlargeClick image to enlarge.

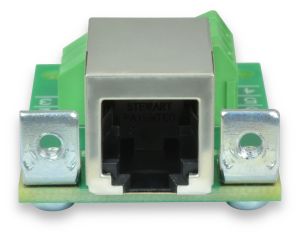

Mounting Bracket Face
Mounting Bracket Face
EnlargeClick image to enlarge.

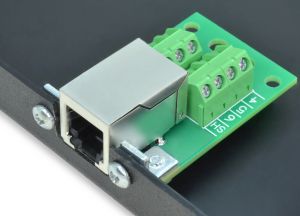

Mounted in Panel
Mounted in Panel
EnlargeClick image to enlarge.

Product Details

  • 6P6C Jack
  • Use with RJ11, RJ12, RJ13, RJ14, RJ18, and RJ25 applications
  • Screw terminal for each of the 6 lines, plus shield
  • Screw terminals accommodate wire sizes from 16AWG to 26AWG
  • Designed to be panel mounted
  • Approximate dimensions: 1.8" x 1.11"
  • Small footprint

Screwdrivers Need a quality screwdriver for your breakout boards? Winford sells Wiha screwdrivers!

Pricing and Ordering

Product # Description 1+ 10+ 50+ RoHS Buy Now
BRKSM6P6CSJ-R-P RJ11/RJ12 6P6C Shielded Jack Breakout Board, Slim Profile, R/A Connector, Panel Mount $15.00 $14.20 $13.65  Yes

BRKSM6P6CSJ-R-P
RoHS   Yes
RJ11/RJ12 6P6C Shielded Jack Breakout Board, Slim Profile, R/A Connector, Panel Mount
QuantityPrice
1+$15.00
10+$14.20
50+$13.65

All of the above items are normally stocked. Please call us if you need to verify availability for a specific quantity, or for pricing at higher quantities. Please visit our ordering page for our ordering policies and a list of ordering methods.

Accessories

Cable Ties

 Cable Ties
- strain relief for Breakout Boards
