DB26 Slim Breakout Boards

BRKSD26HDF-C

BRKSD26HDF-C
(click image to enlarge)

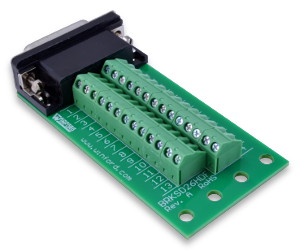

BRKSD26HDF-C
BRKSD26HDF-C (Connector View)
BRKSD26HDF-C (Overhead View)
BRKSD26HDF-R (Connector View)
BRKSD26HDM-C
BRKSD26HDM-R
BRKSD26HDM-R (Overhead View)
  • Available with DB26HD Male or Female connector
  • Screw terminal for each of the 26 lines, plus shield
  • Available with captive screws or jack screws
  • Can be panel mounted
  • Small footprint
See Also: More Breakout Boards,   More DB26HD Breakout Boards,   DB26HD Cables


General Description

Make connections quickly and reliably with this breakout board, which brings every pin of its DB26HD connector out to screw terminals. This product is available with both male and female connectors.

Slim Footprint Allows Tight Spacing

This product's 'slim' form factor means that the end profile of the breakout board is no wider than the connector itself. This can be important for installations where equipment contains multiple connectors which are spaced closely together. Even in this restricted space, these slim breakout boards can still be mounted directly to the equipment without using extension cables. Although the breakout board footprint is small, provision for strain reliefs has been included; holes drilled in the board provide anchor points where tie-wraps can be attached.

Captive Screw / Jack Screw Comparison

These breakout boards are perfect for field wiring tasks and are available in two different connector hardware options: captive screws or jack screws. The jack screws work well when mounting the breakout board to a wall box plate or thin panel that has a DSUB cutout; the captive screws provide a convenient connection to a mating connector that already has jack screws. See the Connector Hardware Options section below for more details.

This breakout board is perfect for production applications as well as experimentation and prototype work. It is helpful for working with I/O cards, DAQ devices, and other devices that use a DB-26 High Density connector.

Technically, the correct term for a DB26HD connector is DA26, but that term is not commonly used.

Need something different? We stock a variety of DB26HD breakout board styles and form factors. Please have a look!

A breakout board is sometimes referred to as a "transition module", "terminal board", "terminal block", "breakout box", "breakout adapter", "terminator", or "interface module".

Breakout boards with enclosures Need an enclosed breakout board? Winford offers our BRKE line of boards, which come installed in enclosures.

Product Documents

Part #DescriptionPDF DrawingDWG DrawingIGES ModelSTEP Model
BRKSD26HDF-CFemale DB26HD with Captive ScrewsPDF DWG IGES CAD
BRKSD26HDF-RFemale DB26HD with Jack ScrewsPDF DWG IGES CAD
BRKSD26HDM-CMale DB26HD with Captive ScrewsPDF DWG IGES CAD
BRKSD26HDM-RMale DB26HD with Jack ScrewsPDF DWG IGES CAD
-D-Sub Panel Cutout DrawingPDF DWG
BRKSD26HDF-C

Female DB26HD with Captive Screws

PDF DWG IGES CAD
BRKSD26HDF-R

Female DB26HD with Jack Screws

PDF DWG IGES CAD
BRKSD26HDM-C

Male DB26HD with Captive Screws

PDF DWG IGES CAD
BRKSD26HDM-R

Male DB26HD with Jack Screws

PDF DWG IGES CAD
-

D-Sub Panel Cutout Drawing

PDF DWG

Connector Hardware Options

These breakout boards are available with either captive screws or jack screws for the connector hardware:

Captive Screw
Captive Screw
EnlargeClick image to enlarge.
Jack Screw
Jack Screw
EnlargeClick image to enlarge.

  • Captive Screws are male #4-40 screws coming out of the face of the connector to accommodate direct mounting to a mating connector which contains jack screws (see picture below).
  • Jack Screws are the hex standoffs typically installed on DSUB connectors; they are threaded for #4-40 screws. Jack screws are perfect for connecting to a cable which has thumbscrews, for mounting to a wall plate, or for installing on a thin panel which has a DSUB cutout (see picture below).
Direct Mount with Captive Screws
Application: Direct Mount Using Captive Screws
BRKSD25M-C pictured
EnlargeClick image to enlarge.
Panel Mount with Jack Screws
Application: Panel Mount Using Jack Screws
BRKSD25F-R pictured
EnlargeClick image to enlarge.

Product Details

  • DB26HD connector
  • Screw terminal for each of the 26 lines, plus shield
  • Screw terminals accommodate wire sizes from 16AWG to 26AWG
  • Available with captive screws or jack screws
  • Can be panel mounted
  • Approximate dimensions: 3.0" x 1.53"
  • Small footprint

Screwdrivers Need a quality screwdriver for your breakout boards? Winford sells Wiha screwdrivers!

Pricing and Ordering

Product # Description 1+ 10+ RoHS Buy Now
DB26HD Female Right Angle Connector:
BRKSD26HDF-C DB26HD Female Slim Breakout Board, R/A Connector, Captive Screws $27.80 $26.20  Yes
BRKSD26HDF-R DB26HD Female Slim Breakout Board, R/A Connector, Jack Screws $25.70 $24.10  Yes
DB26HD Male Right Angle Connector:
BRKSD26HDM-C DB26HD Male Slim Breakout Board, R/A Connector, Captive Screws $27.80 $26.20  Yes
BRKSD26HDM-R DB26HD Male Slim Breakout Board, R/A Connector, Jack Screws $25.70 $24.10  Yes

DB26HD Female Right Angle Connector:
BRKSD26HDF-C
RoHS   Yes
DB26HD Female Slim Breakout Board, R/A Connector, Captive Screws
QuantityPrice
1+$27.80
10+$26.20
BRKSD26HDF-R
RoHS   Yes
DB26HD Female Slim Breakout Board, R/A Connector, Jack Screws
QuantityPrice
1+$25.70
10+$24.10
DB26HD Male Right Angle Connector:
BRKSD26HDM-C
RoHS   Yes
DB26HD Male Slim Breakout Board, R/A Connector, Captive Screws
QuantityPrice
1+$27.80
10+$26.20
BRKSD26HDM-R
RoHS   Yes
DB26HD Male Slim Breakout Board, R/A Connector, Jack Screws
QuantityPrice
1+$25.70
10+$24.10

All of the above items are normally stocked. Please call us if you need to verify availability for a specific quantity, or for pricing at higher quantities. Please visit our ordering page for our ordering policies and a list of ordering methods.

Accessories

Cable Ties

 Cable Ties
- strain relief for Breakout Boards
