36-Pin Centronics Breakout Board

BRKDC36FV1-R-FT

BRKDC36FV1-R-FT
(click image to enlarge)
BRKDC36FV1-R-FT
BRKDC36FV1-R-DIN
Connector
  • 36-Pin Centronics ('Amphenol' / 'CHAMP') connector
  • Perfect for prototyping and permanent installations
  • Screw terminal for each of the 36 lines, plus shield
  • Solder pad connection space for all 36 lines plus shield
  • Supports addition of .1" pin headers
  • Double deck screw terminals provide compact wiring
  • Fast and easy connections
  • Rubber feet or DIN rail mount
See Also: More Breakout Boards,   More Centronics Breakout Boards


General Description

Centronics, MDR, VHDCI, HPDSUB  Connector Guide

Make connections quickly and reliably with this breakout board, which brings every pin of its 36-pin Centronics connector out to screw terminals.

Each pin, including shield, is also brought to solder pads (3 per pin) at 0.1" spacing, allowing easy addition of pin headers or other components. Please note that the breakout boards are manufactured with a connection between each connector pin and the corresponding terminal block position; no soldering of any type is necessary. The solder pads simply provide an area for making optional connections to additional headers or other components.

This breakout board is perfect for production applications as well as experimentation and prototype work. It is well-suited for interfacing with data acquisition equipment, network systems, or any other devices that use the 36-pin Centronics connector.

Centronics connectors are also referred to as a CHAMP or Amphenol connectors. The 36-Pin Centronics is sometimes called a 'printer' or IEEE1284 connector.

A breakout board is sometimes referred to as a "transition module", "terminal board", "terminal block", "breakout box", "breakout adapter", "terminator", or "interface module".

Product Documents

Part #DescriptionPDF DrawingDWG DrawingIGES ModelSTEP ModelDocument
BRKDC36FV1-R-DIN36-pin Centronics, Right Angle, DIN MountPDF DWG IGES CAD
BRKDC36FV1-R-FT36-pin Centronics, Right Angle, Rubber FeetPDF DWG IGES CAD
Connector GuideWhich connector do I have? Consult this helpful identification guide.PDF
BRKDC36FV1-R-DIN

36-pin Centronics, Right Angle, DIN Mount

PDF DWG IGES CAD
BRKDC36FV1-R-FT

36-pin Centronics, Right Angle, Rubber Feet

PDF DWG IGES CAD
Connector Guide

Which connector do I have? Consult this helpful identification guide.

PDF

Mounting Options

These products are available in two different mounting variants. Product numbers ending with -DIN come with DIN clips already installed and ready to snap onto 35mm or 32mm DIN rail. Product numbers ending with -FT have stick-on rubber feet installed on the bottom side, allowing for benchtop use or panel mounting. For panel mounting, we suggest 1/4" nylon standoffs under the mounting holes, and #6 screws.

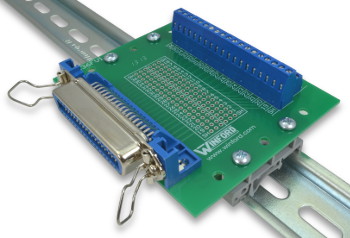

BRKDC36FV1-R-DIN
DIN Rail Mount
BRKDC36FV1-R-DIN
EnlargeClick image to enlarge.
Rail not included
BRKDC36FV1-R-FT
Rubber Feet
BRKDC36FV1-R-FT
EnlargeClick image to enlarge.

Product Details

  • Centronics 36-Pin / CHAMP / Amphenol / IEEE-1284 connector
  • Screw terminal for each of the 36 lines, plus shield
  • Solder pad connection holes, three (3) per line
  • Supports addition of .1" pin headers
  • Screw terminals accommodate wire sizes from 16AWG to 26AWG
  • Approximate dimensions: 3.15" x 3.75"
  • Rubber feet or DIN rail mount

Pricing and Ordering

Product # Description 1+ 10+ RoHS Buy Now
Centronics 36-Pin Female Right Angle Connector:
BRKDC36FV1-R-DIN Centronics 36-Pin Female Breakout Board, R/A Connector, DIN Rail Mount $41.75 $39.60  Yes
BRKDC36FV1-R-FT Centronics 36-Pin Female Breakout Board, R/A Connector, Feet $40.15 $38.00  Yes

Centronics 36-Pin Female Right Angle Connector:
BRKDC36FV1-R-DIN
RoHS   Yes
Centronics 36-Pin Female Breakout Board, R/A Connector, DIN Rail Mount
QuantityPrice
1+$41.75
10+$39.60
BRKDC36FV1-R-FT
RoHS   Yes
Centronics 36-Pin Female Breakout Board, R/A Connector, Feet
QuantityPrice
1+$40.15
10+$38.00

All of the above items are normally stocked. Please call us if you need to verify availability for a specific quantity, or for pricing at higher quantities. Please visit our ordering page for our ordering policies and a list of ordering methods.
