RJ45 8P8C Breakout Board

BRK8P8C-R-DIN

BRK8P8C-R-DIN
(click image to enlarge)
BRK8P8C-R-DIN
BRK8P8C-R-FT
BRK8P8C-R-FT (Overhead View)
BRK8P8C-S-DIN
BRK8P8C-S-FT
BRK8P8C-S-FT (Overhead View)
  • RJ45/8P8C Jack
  • Perfect for prototyping serial port circuits
  • Screw terminal for each of the 8 lines
  • Solder pad connection space for all 8 lines
  • Supports addition of .1" pin headers
  • Rubber feet or DIN rail mount
See Also: RJ45 (8P8C) Cables,   More RJ45 (8P8C) Products


General Description

Make connections quickly and reliably with this breakout board, which brings every pin of its 8P8C modular jack connector out to screw terminals.

Each pin is also brought to solder pads (5 per pin) at 0.1" spacing, allowing easy addition of pin headers or other components. Please note that the breakout boards are manufactured with a connection between each connector pin and the corresponding terminal block position; no soldering of any type is necessary. The solder pads simply provide an area for making optional connections to additional headers or other components.

This breakout board is perfect for production applications as well as experimentation and prototype work. It is well-suited for work with serial ports, sensors, data acquisition equipment, RS-232 devices, MODBUS connections, and other devices that use RJ45/8P8C connectors.

The '8P8C' designation on the modular jack stands for '8-Position, 8-Conductor', which is compatible with RJ45 connectors.

For those working with ethernet networks, please note that this board is not CAT5 certified. However, our experience so far shows that these boards can be used on 100Mbps ethernet networks without introducing problems. As usual, the wires you connect to the breakout board's screw terminals should maintain their twist as close to the screw terminals as possible.

Need something different? We stock a variety of RJ45/8P8C breakout board styles and form factors. Please have a look!

A breakout board is sometimes referred to as a "transition module", "terminal board", "terminal block", "breakout box", "breakout adapter", "terminator", or "interface module".

Product Documents

Part #DescriptionData SheetPDF DrawingDWG DrawingIGES ModelSTEP Model
BRK8P8C-R-DINRight Angle, DIN MountPDF PDF DWG IGES CAD
BRK8P8C-R-FTRight Angle, Rubber FeetPDF PDF DWG IGES CAD
BRK8P8C-S-DINStraight Connector, DIN MountPDF PDF DWG IGES CAD
BRK8P8C-S-FTStraight Connector, Rubber FeetPDF PDF DWG IGES CAD
BRK8P8C-R-DIN

Right Angle, DIN Mount

PDF PDF DWG IGES CAD
BRK8P8C-R-FT

Right Angle, Rubber Feet

PDF PDF DWG IGES CAD
BRK8P8C-S-DIN

Straight Connector, DIN Mount

PDF PDF DWG IGES CAD
BRK8P8C-S-FT

Straight Connector, Rubber Feet

PDF PDF DWG IGES CAD

Connector Style

These breakout boards are available with either a Right Angle connector or a Straight ("Vertical") connector. The terms Right Angle and Straight refer to the connector itself, NOT the relationship of the mating cable to the plane of the PCB. In fact, the cable mating to a Right Angle connector is parallel to the PCB, while the cable mating to a Straight connector is perpendicular to the PCB. These are pictured below:

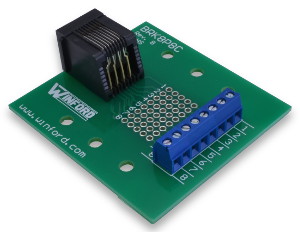

BRK8P8C-R-FT
Right Angle Connector
BRK8P8C-R-FT pictured
EnlargeClick image to enlarge.

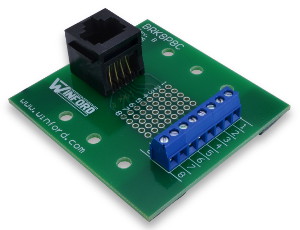

BRK8P8C-S-FT
Straight Connector
BRK8P8C-S-FT pictured
EnlargeClick image to enlarge.

Mounting Options

These products are available in two different mounting variants. Product numbers ending with -DIN come with DIN clips already installed and ready to snap onto 35mm or 32mm DIN rail. Product numbers ending with -FT have stick-on rubber feet installed on the bottom side, allowing for benchtop use or panel mounting. For panel mounting, we suggest 1/4" nylon standoffs under the mounting holes, and #6 screws.

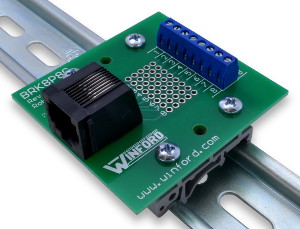

BRK8P8C-R-DIN
DIN Rail Mount
BRK8P8C-R-DIN
EnlargeClick image to enlarge.
Rail not included
BRK8P8C-R-FT
Rubber Feet
BRK8P8C-R-FT
EnlargeClick image to enlarge.

Product Details

  • RJ45/8P8C Jack
  • Screw terminal for each of the 8 lines
  • Solder pad connection holes, five (5) per line
  • Supports addition of .1" pin headers
  • Screw terminals accommodate wire sizes from 16AWG to 26AWG
  • Approximate dimensions: 2.38" x 2.2"
  • Rubber feet or DIN rail mount

Screwdrivers Need a quality screwdriver for your breakout boards? Winford sells Wiha screwdrivers!

Pricing and Ordering

Product # Description 1+ 10+ RoHS Buy Now
Right Angle Connector:
BRK8P8C-R-DIN RJ45 8P8C Breakout Board, R/A Connector, DIN Rail Mount $14.45 $13.65  Yes
BRK8P8C-R-FT RJ45 8P8C Breakout Board, R/A Connector, Feet $12.85 $12.05  Yes
Straight Connector:
BRK8P8C-S-DIN RJ45 8P8C Breakout Board, Straight Connector, DIN Rail Mount $15.50 $14.70  Yes
BRK8P8C-S-FT RJ45 8P8C Breakout Board, Straight Connector, Feet $13.90 $13.10  Yes

Right Angle Connector:
BRK8P8C-R-DIN
RoHS   Yes
RJ45 8P8C Breakout Board, R/A Connector, DIN Rail Mount
QuantityPrice
1+$14.45
10+$13.65
BRK8P8C-R-FT
RoHS   Yes
RJ45 8P8C Breakout Board, R/A Connector, Feet
QuantityPrice
1+$12.85
10+$12.05
Straight Connector:
BRK8P8C-S-DIN
RoHS   Yes
RJ45 8P8C Breakout Board, Straight Connector, DIN Rail Mount
QuantityPrice
1+$15.50
10+$14.70
BRK8P8C-S-FT
RoHS   Yes
RJ45 8P8C Breakout Board, Straight Connector, Feet
QuantityPrice
1+$13.90
10+$13.10

All of the above items are normally stocked. Please call us if you need to verify availability for a specific quantity, or for pricing at higher quantities. Please visit our ordering page for our ordering policies and a list of ordering methods.
