RJ50 10P10C Shielded Jack Breakout Board

BRK10P10CSJ-R-DIN

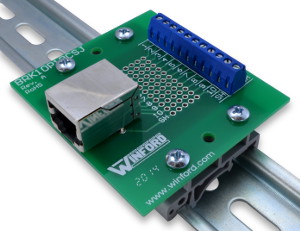

BRK10P10CSJ-R-DIN
(click image to enlarge)
BRK10P10CSJ-R-DIN
BRK10P10CSJ-R-FT

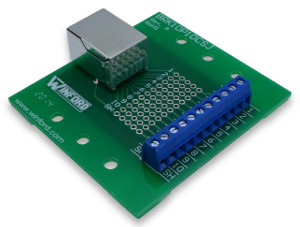

BRK10P10CSJ-R-FT (Overhead View)
  • Shielded RJ50/10P10C Jack
  • Perfect for serial port circuits
  • Screw terminal for each of the 10 lines, plus shield
  • Solder pad connection space for all 10 lines, plus shield
  • Supports addition of .1" pin headers
  • Rubber feet or DIN rail mount
See Also: More RJ50 Products,   RJ50/10P10C Cables,   RJ45 Shielded Jack Breakout Board,   More Breakout Boards


General Description

Make connections quickly and reliably with this breakout board, which brings every pin of its 10P10C / RJ50 modular jack connector out to screw terminals.

Each pin, including shield, is also brought to solder pads (5 per pin) at 0.1" spacing, allowing easy addition of pin headers or other components. Please note that the breakout boards are manufactured with a connection between each connector pin and the corresponding terminal block position; no soldering of any type is necessary. The solder pads simply provide an area for making optional connections to additional headers or other components.

The connector shield is connected to a copper plane on the PCB (to minimize electrical noise) in addition to being brought out to a screw terminal.

This breakout board is perfect for production applications as well as experimentation and prototype work. It is well-suited for work with serial ports, sensors, data acquisition equipment, RS-232 devices, and other devices that use RJ50/10P10C connectors.

The '10P10C' designation on the modular jack stands for '10-Position, 10-Conductor', which is compatible with RJ50 connectors.

A breakout board is sometimes referred to as a "transition module", "terminal board", "terminal block", "breakout box", "breakout adapter", "terminator", or "interface module".

Product Documents

Part #DescriptionData SheetPDF DrawingDWG DrawingIGES ModelSTEP Model
BRK10P10CSJ-R-DIN10P10C Right Angle, DIN MountPDF PDF DWG IGES CAD
BRK10P10CSJ-R-FT10P10C Right Angle, Rubber FeetPDF PDF DWG IGES CAD
BRK10P10CSJ-R-DIN

10P10C Right Angle, DIN Mount

PDF PDF DWG IGES CAD
BRK10P10CSJ-R-FT

10P10C Right Angle, Rubber Feet

PDF PDF DWG IGES CAD

Mounting Options

These products are available in two different mounting variants. Product numbers ending with -DIN come with DIN clips already installed and ready to snap onto 35mm or 32mm DIN rail. Product numbers ending with -FT have stick-on rubber feet installed on the bottom side, allowing for benchtop use or panel mounting. For panel mounting, we suggest 1/4" nylon standoffs under the mounting holes, and #6 screws.
BRK10P10CSJ-R-DIN
DIN Rail Mount
BRK10P10CSJ-R-DIN
EnlargeClick image to enlarge.
Rail not included
BRK10P10CSJ-R-FT
Rubber Feet
BRK10P10CSJ-R-FT
EnlargeClick image to enlarge.

Product Details

  • Shielded RJ50/10P10C Jack
  • Screw terminal for each of the 10 lines, plus shield
  • Solder pad connection holes, five (5) per line
  • Supports addition of .1" pin headers
  • Screw terminals accomodate wire sizes from 16AWG to 26AWG
  • Approximate dimensions: 2.38" x 2.6"
  • Rubber feet or DIN rail mount

Screwdrivers Need a quality screwdriver for your breakout boards? Winford sells Wiha screwdrivers!

Pricing and Ordering

Product # Description 1+ 10+ RoHS Buy Now
BRK10P10CSJ-R-DIN RJ50 10P10C Shielded Jack Breakout Board, R/A Connector, DIN Rail Mount $16.00 $15.25  Yes
BRK10P10CSJ-R-FT RJ50 10P10C Shielded Jack Breakout Board, R/A Connector, Feet $14.50 $13.75  Yes

BRK10P10CSJ-R-DIN
RoHS   Yes
RJ50 10P10C Shielded Jack Breakout Board, R/A Connector, DIN Rail Mount
QuantityPrice
1+$16.00
10+$15.25
BRK10P10CSJ-R-FT
RoHS   Yes
RJ50 10P10C Shielded Jack Breakout Board, R/A Connector, Feet
QuantityPrice
1+$14.50
10+$13.75
